Hvac Ventilation Inspection Ceiling And Wall Galvanized Aluminum Ceiling Access Door Panel AD-HG

Aluminum maintenance access panel door is easy and quick installation, fixing by screws or clips. Aluminium trap door is suitable for ceilings of construction building, hotels, shopping malls and other public places.

Product Specification:
  • Material : aluminum & galvanized board
  • Shape : sqaure
  • Color : White
  • Size : Custom size
  • Lock : Snap locks
  • Surface finish : powder coated
  • Accessories : Air damper
  • Function : Exhaust air
  • Installation : Ce
INQUIRY NOW
Product Details

Construction:

  • Panel:  High quality galvanized sheet / aluminum alloy.
  • Out frame: High quality extruded aluminum alloy(A6063) profile with 30mm flange



Description:

  • The frame & inner panel are high quality extruded aluminum sheet and galvanized sheet construction with advantages of corrosion resistance and rigidity.

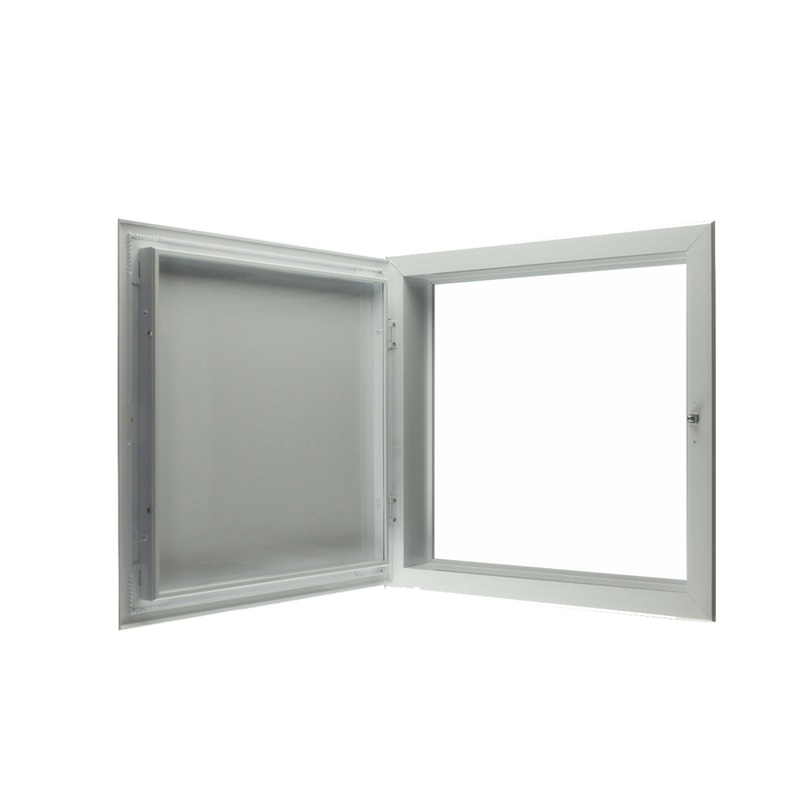

  • It consists out frame and inner pannel. The inner pannel is fixed to the out-frame by hinges on one side and by screw on the other side..
  • The panel can be easily open to allow for maximum flexibility in the installation, maintenance.



Surface Finish:

  • Powder coated color finish as per RAL color
  • standard color: RAL9016

ceiling attic access door

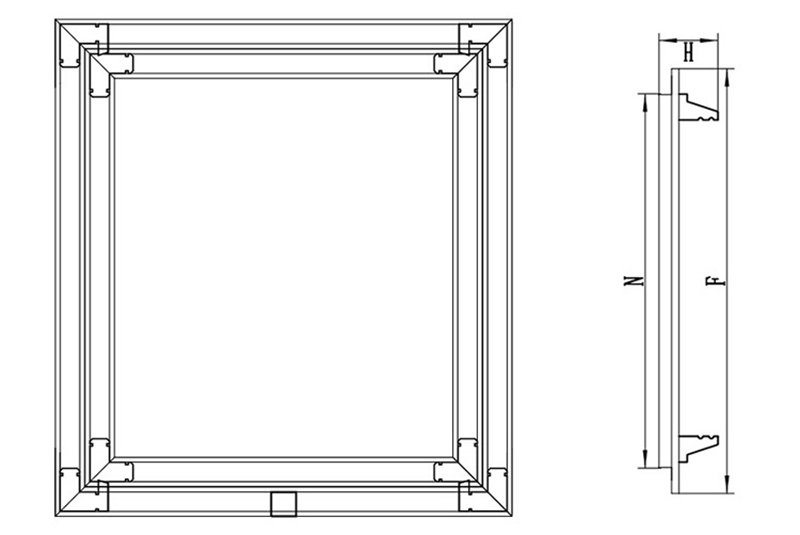

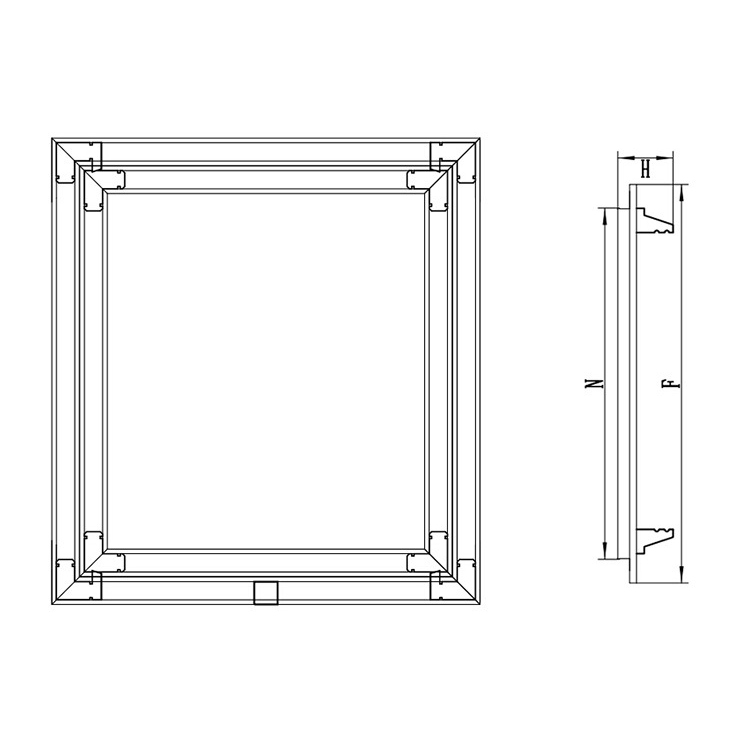

Size:

  • Any size available
  • Overall frame size = Face size + 60mm
  • Standard size
Item Code Face size(mm) Frame Size(mm)
AD-HG-200 200x200 260x260
AD-HG-300 300x300 360x360
AD-HG-400 400x400 460x460
AD-HG-450 450x450 510x510
AD-HG-600 600x600 660x660
