Hvac Ceiling Aluminum Access Hatch Frame Access Door Panel Without Gypsum Board AD-FC

Customized size retail 12x12 24x24 metal inspection access panel hatch are manufactured from sheet steel and covered in polymer paint, easy, fast and conveniently mounted in the walls and ceilings.

Product Specification:
  • Material : Aluminum
  • Material thickness : Standard is 1.0mm
  • Finished : Powder coated or anodized
  • Color : Standard wihte or silver
  • Size : Any size is available
  • Accessories : air damper

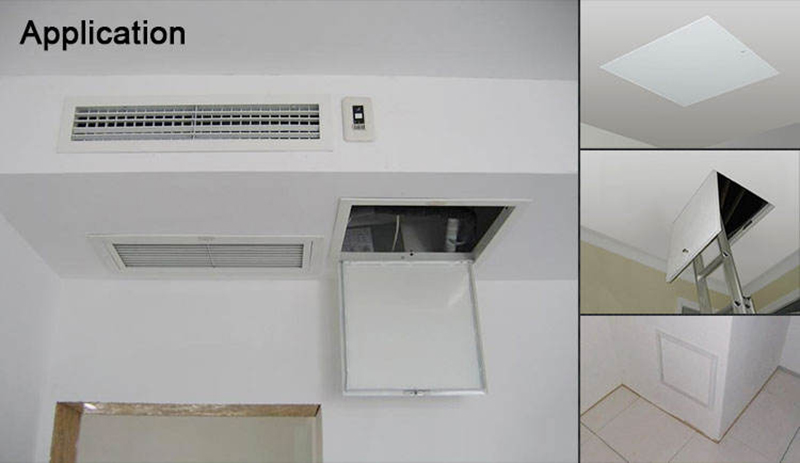

  • Installation : Ceiling
INQUIRY NOW
Product Details

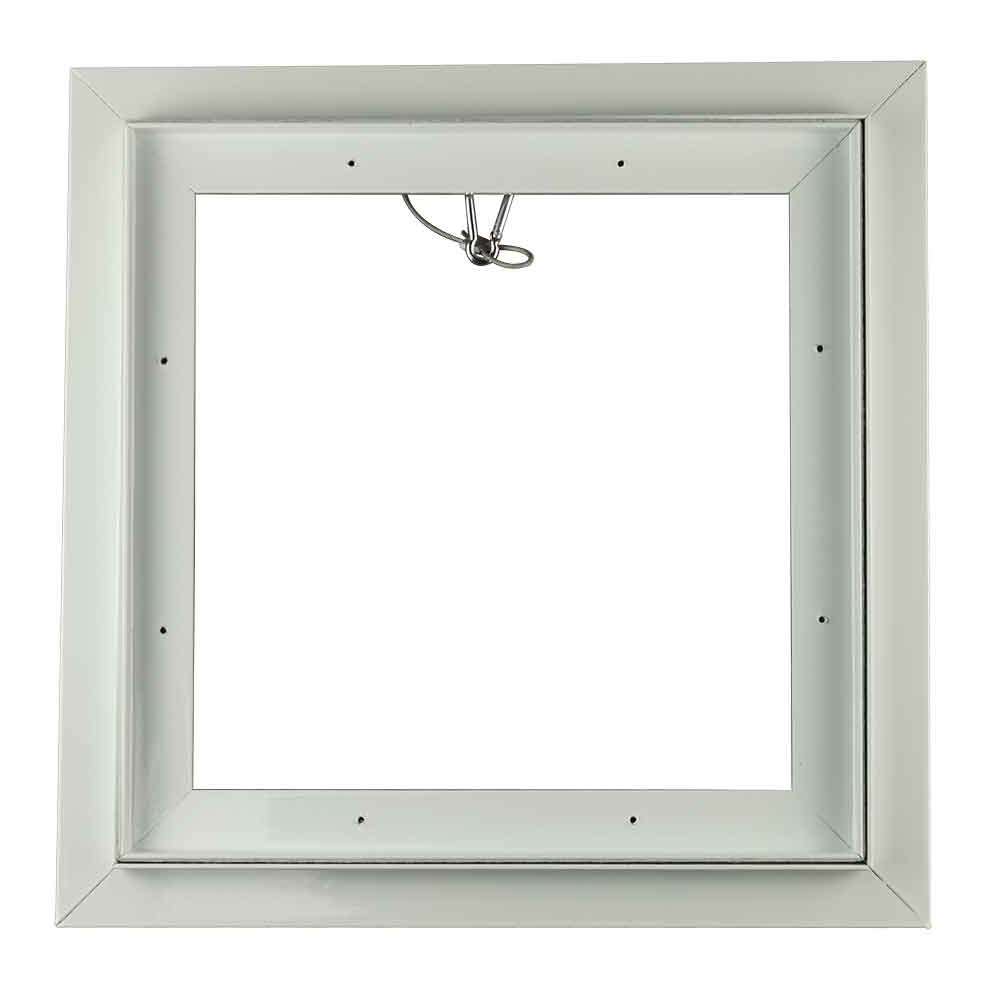

Construction:

  • Inner frame: High quality extruded aluminum alloy(A6063).
  • Out frame: High quality extruded aluminum alloy(A6063)



Description:

  • The frame is made of high quality extruded aluminum plate structure, which has the
    advantages of corrosion resistance and good rigidity.

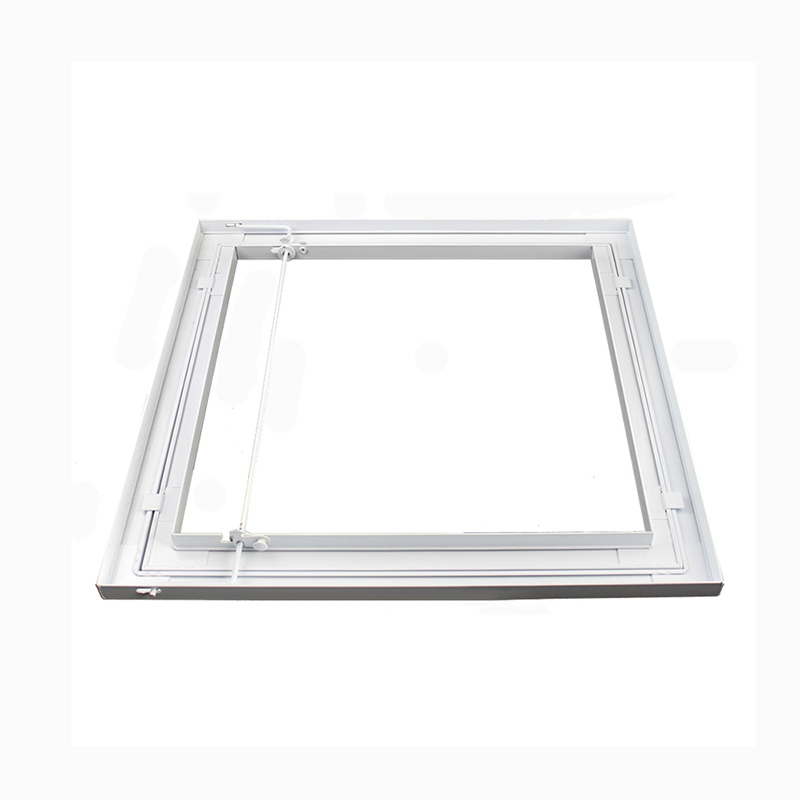

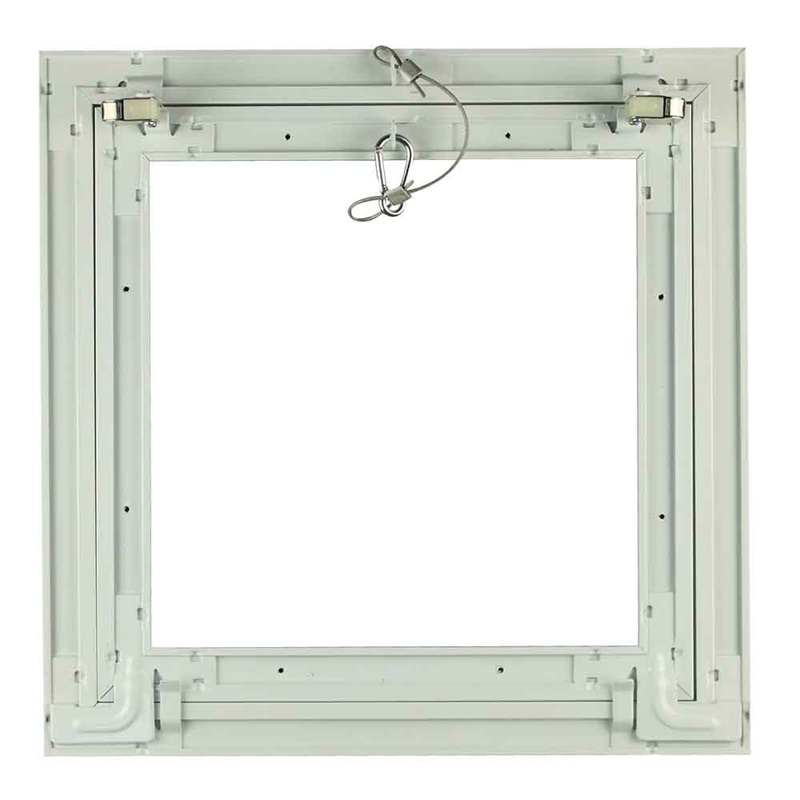

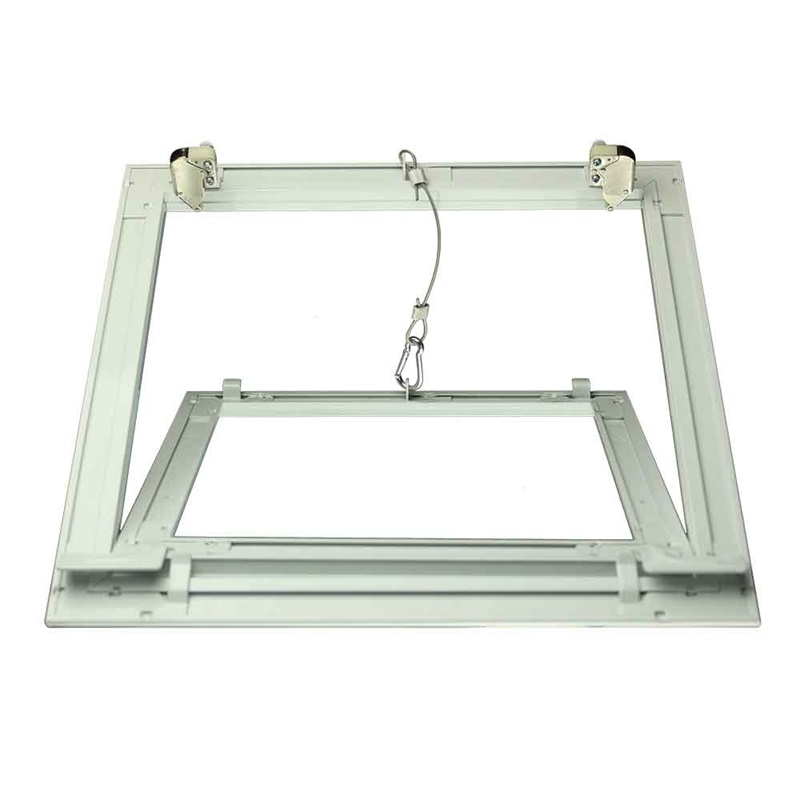

  • It consists of an outer frame and an inner frame. The inner frame is secured to the outer frame
    by hinges on one side and screws on the other side.

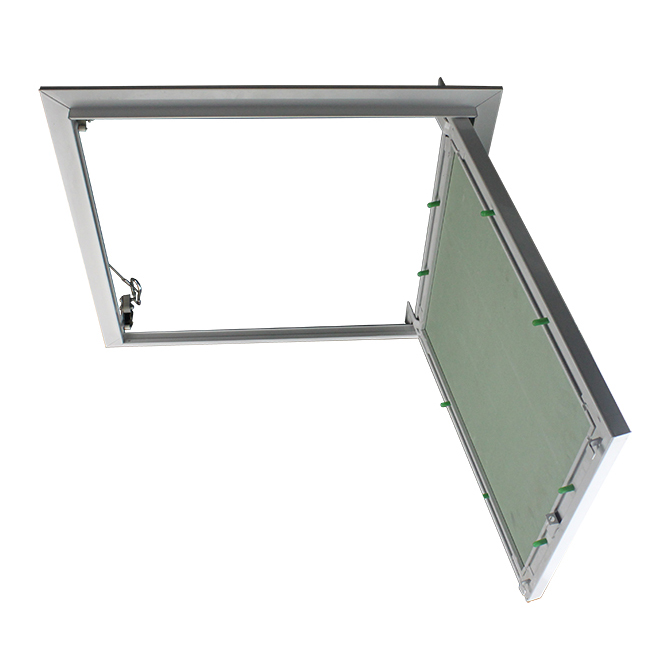

  • The frame can be easily opened, allowing for maximum flexibility in installation, maintenance.



Surface Finish:

  • Powder coated color finish as per RAL color
  • standard color: RAL9016

spring loaded access panels

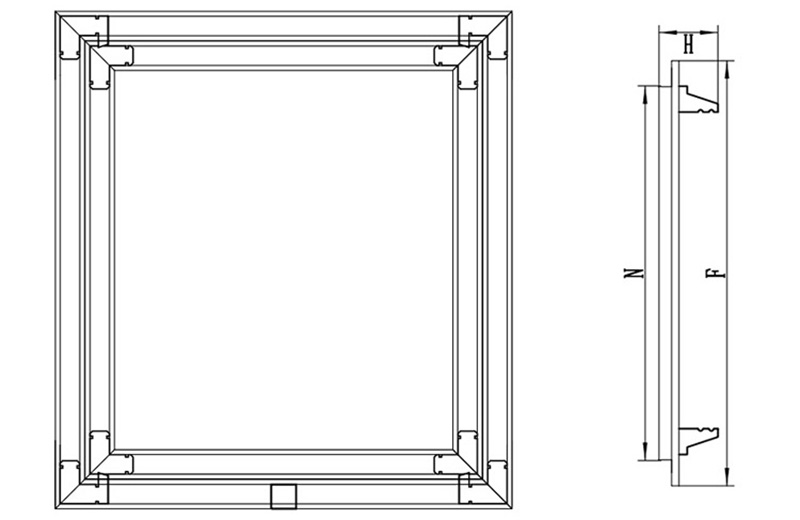

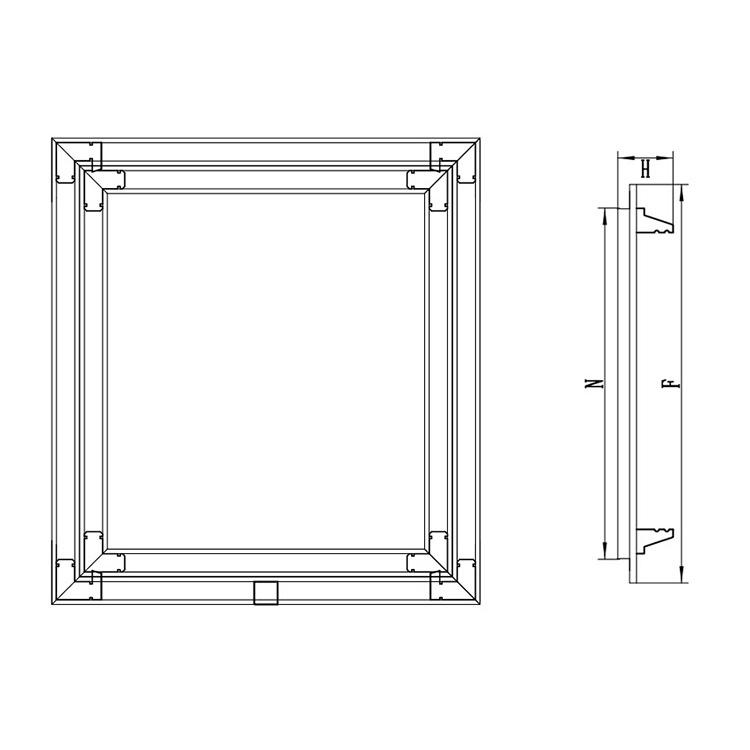

Size:

  • Any size available
  • Overall face size = Neck size + 60mm
  • Standard size (Neck size=A)



Item Code A =Neck size(mm) Face Size(mm)
AD-FC-200 200x200 245x245
AD-FC-300 300x300 345x345
AD-FC-400 400x400 445x445
AD-FC-450 450x450 495x495
AD-FC-600 600x600 645x645
