Wholesale Hvac Ventilation Fire Resistant Air Vent Pipe Aluminium Flexible Duct Manufacturer AFD-S&D

100 125 150mm aluminum connecting flexible ducting pipe is made of aluminum foil outside, a polyester film in middle. It is light in weight and suitable to be used in low and medium pressure heating and hvac systems.

Product Specification:
  • Material : Aluminum foil + steel ring
  • Material thickness : 0.1 mm
  • Standard length : 10 meters per roll
  • Diameter : 60, 75, 100, 125, 150, 160, 200, 250, 300mm, etc.
  • Aluminum foil layer : Single or double layer optional |`-+#$
INQUIRY NOW
Product Details

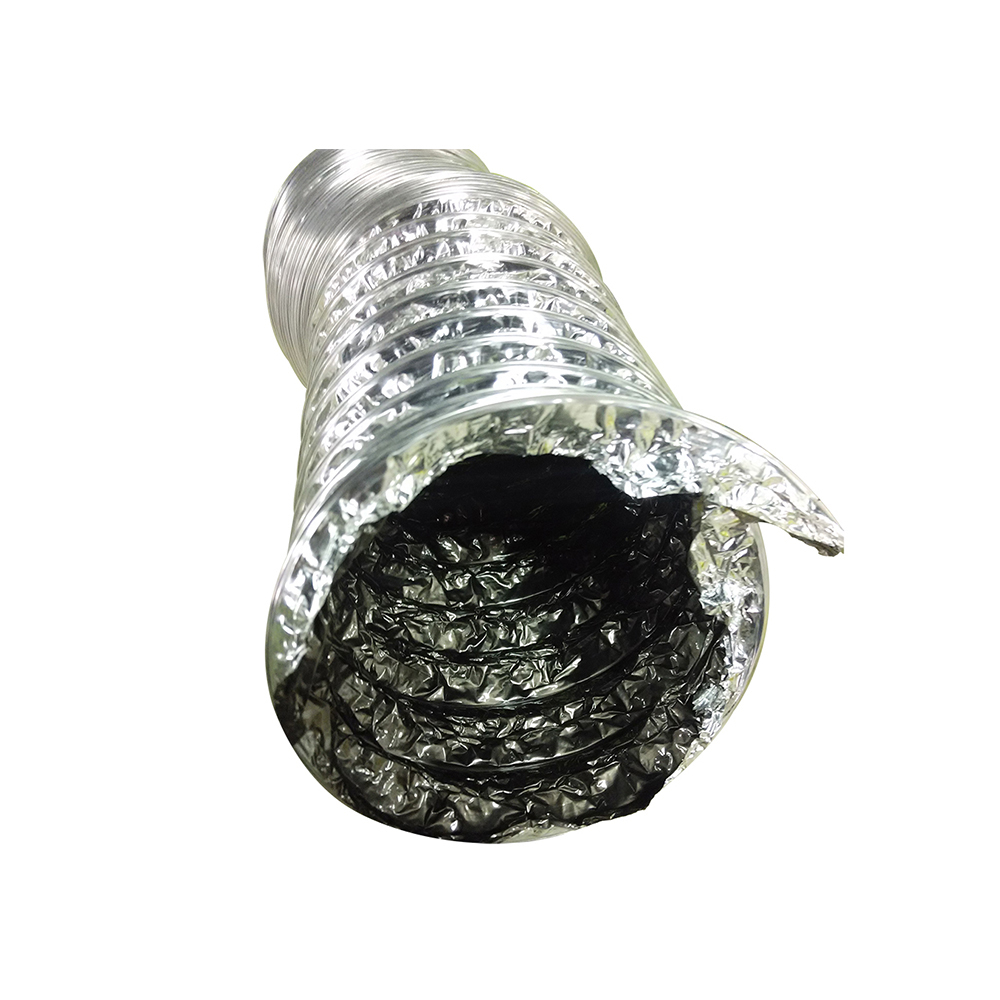

aluminium foil to make flexible duct

Description:

  • The duct is made of aluminum combined with polyester and aluminum foil.
    It is specifically designed for the needs of the ventilation and air conditioning market.

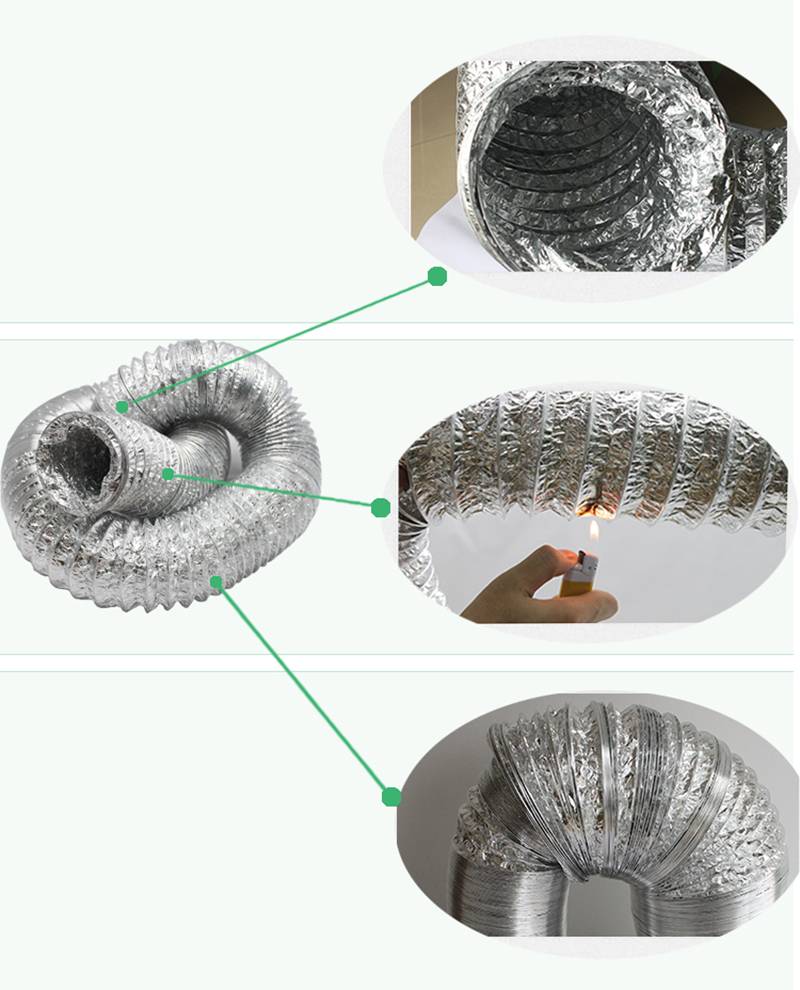

  • Its advantage is that it does not need to use special tools for cutting or fixing, and does
    not emit toxic gases at high temperatures. This is fire resistance.

Construction:

  • HVAC Aluminum flexible air conditioning duct flexible air duct
  • 1/2 layer of the aluminium laminated with the polyester with the coil made of the spring wire.

Total 3 layers:

  •  1st layer: Aluminum foil ( 32um raw material)
  •  2nd layer: Polyester(13um)
  •  3rd layer: Aluminum foil
  •  Spring wire: carbon steel from 0.9~1.3mm

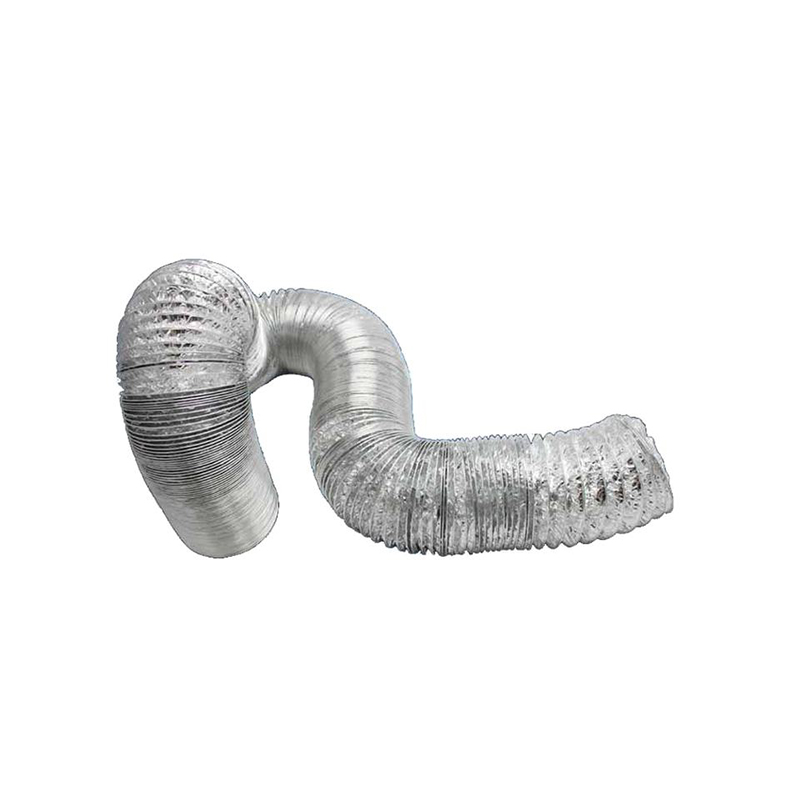

aluminium flexible duct pipe price

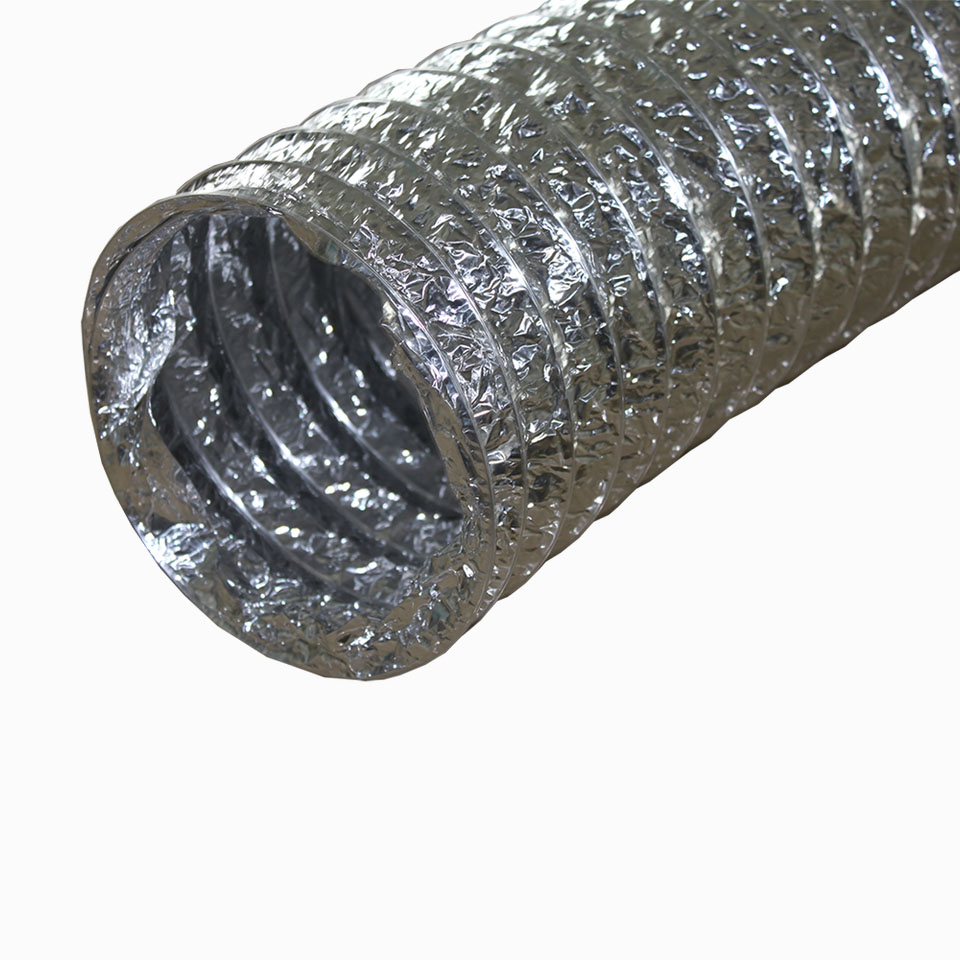

flexible air conditioning duct

Technical specification:
1. Air velocity: 30m/s (max) 30m/s (max)
2. Temperature range: -30°C to '+150°C -30°C to '+250°C
3. Operating pressure: 3000Pa (max)
4. Fire resistance: yes
5.  Standard length: 10m

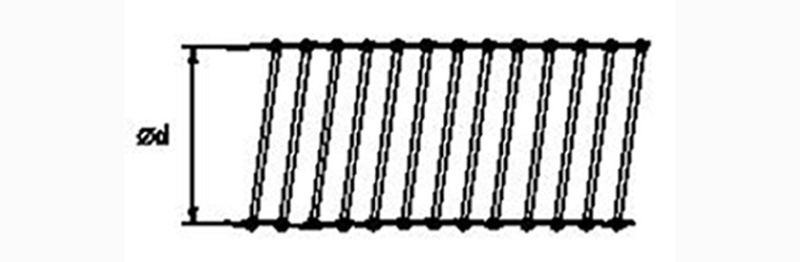

  spring wire (mm)
Diameter space diameter
4" 25 1
5" 25 1
6" 30 1
7" 30 1.1
8" 35 1.1
10" 40 1.2
12" 40 1.2
14" 40 1.2
16" 40 1.3
18" 40 1.3
20" 40 1.3

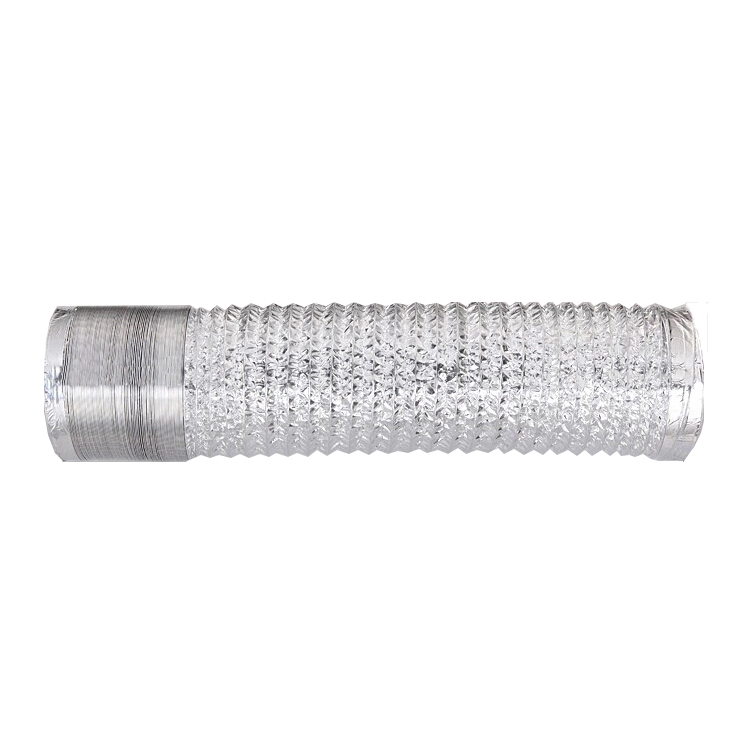

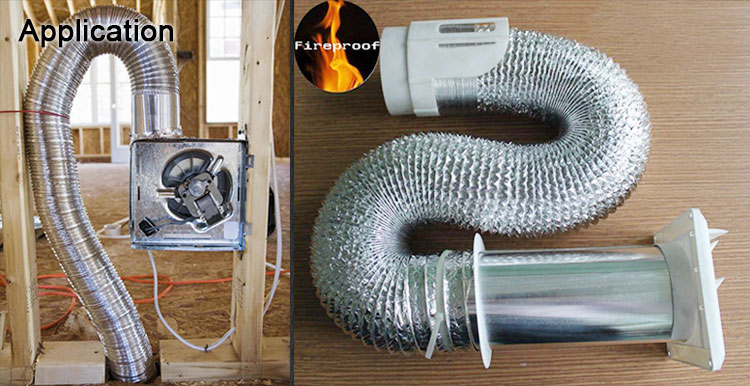

exhaust fan flexible duct
