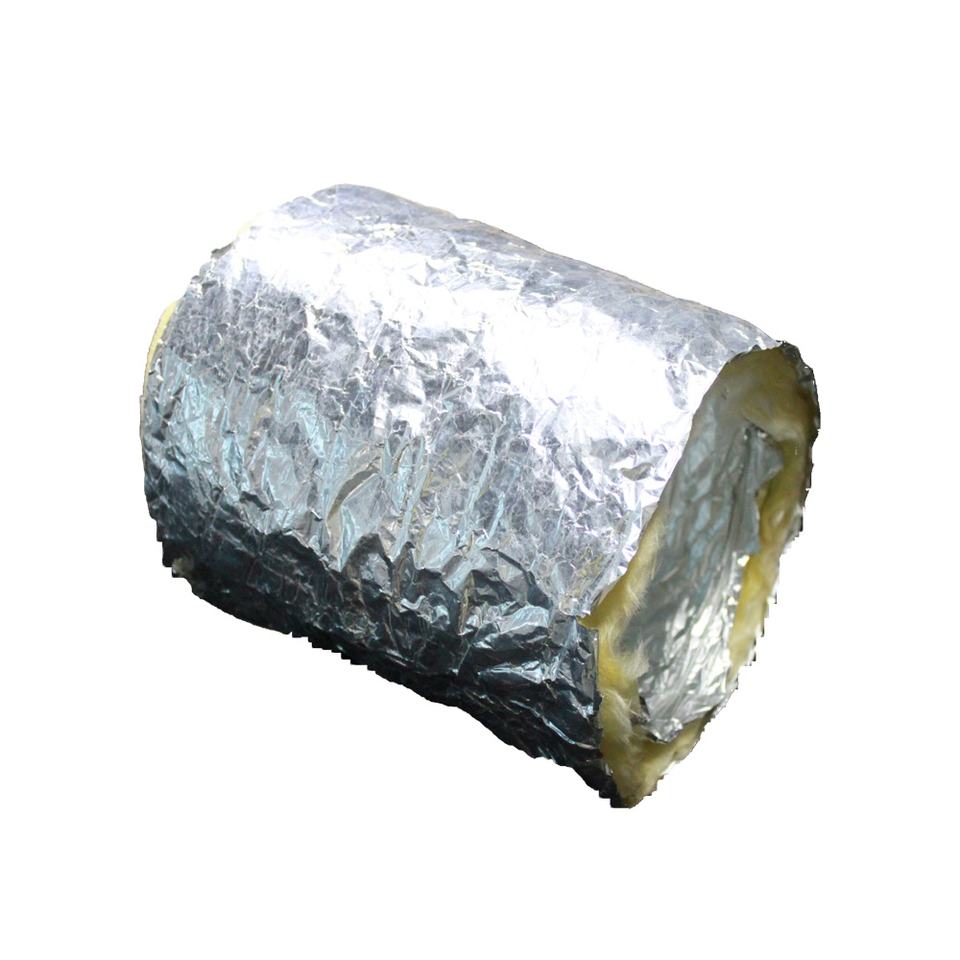

Hvac system Air Conditioning Aluminum Fiberglass Hose Polyester Insulated Flexible Duct IFD-S&D

6 8 10 inch insulated flexible ducting vent pipe is a superb choice for hvac air duct use. The insulated nature of this portable air conditioner hose allows it to operate in both high and low temperatures.

Product Specification:
  • Materail : rubber foam insulation tube
  • Material Thickness : 1.3mm
  • Surface finish : Powder coated/ anodized
  • Diameter range (mm) : 80-610
  • Temperature range °C : -30/+140
  • Size : Any Size Available
  • accessary : neck adap
INQUIRY NOW
Product Details

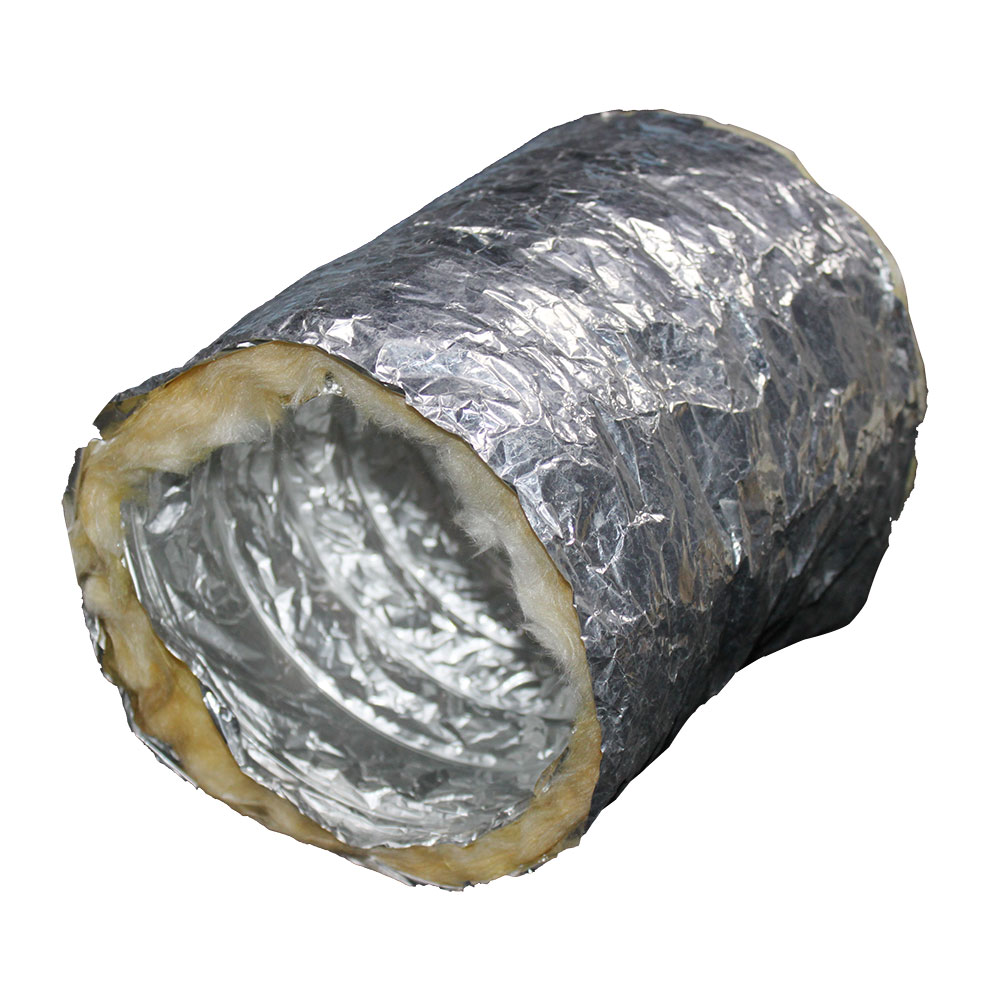

flexible air duct with fiberglass insulation

Description:

  • Insulation coat is comprised of the glass wool, and the outer protection is built with the
    two-layercoat of the laminated aluminium strengthened with the glass fibre.
  • It has the advantage of no need to use special tools for cutting or fixing, it does not emit
    toxic gases in high temperatures. it is fire resistance.
  • Supplied in standard 10 meter length.

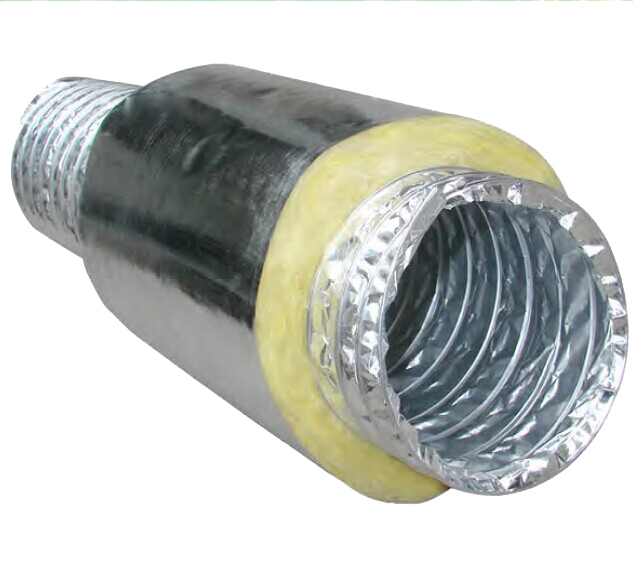

Construction:

Insulated flexible duct(IFD-S)—with the polyester with the coil made of the spring wire.

  • Inner: single layer aluminum flexible duct
  • Insulation: thickness 25mm, 16KG/m3 yellow fiberglass
  • Outer Jacket: Aluminum + polyester

Insulated flexible duct(IFD-D)—with the polyester with the coil made of the spring wire.

  •     Inner: double layer aluminum flexible duct
  •     Insulation: thickness 25mm, 16KG/m3 yellow fiberglass
  •     Outer Jacket: Aluminum + polyester



Technical specification:



  IFD-S IFD-D
Air velocity: 30m/s (max) 30m/s (max)
Temperature range: -30℃ to '+150℃ -30℃ to '+250℃
Operating pressure: 3000Pa (max) 3000Pa (max)
Fire resistance: yes yes
Standard length: 10m 10m







4 inch insulated flexible duct

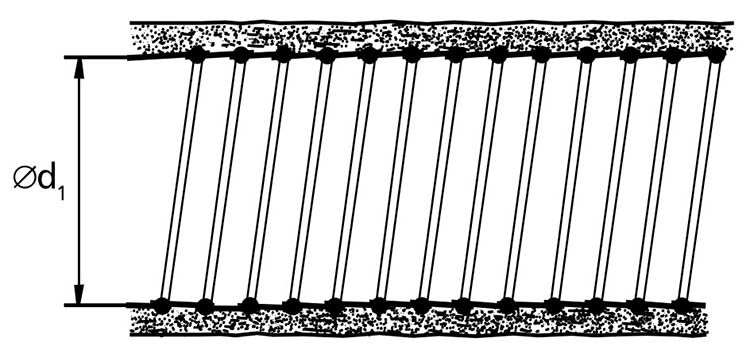

Diameter spring wire (mm)
space diameter
4" 25 1
5" 25 1
6" 30 1
7" 30 1.1
8" 35 1.1
10" 40 1.2
12" 40 1.2
14" 40 1.2
16" 40 1.3
18" 40 1.3
20" 40 1.3
