PVC flexible duct

Hvac System Air Conditioning Plastic Hose Insulated Combie PVC Aluminum Foil Flexible Duct CFD

Hvac 6 8 10 12 flexible exhaust air ductwork, pvc flexible duct hose is made out of pure pvc and galvanized steel wire. It is widely used in the residential and commercial buildings to work as the vinyl dryer vent hose.

Product Specification:
  • Material : extruded aluminum alloy
  • Diameter range (mm) :
  • Material Thickness : 1.3mm
  • feature : heat resistant
  • Size : Any Size Available
INQUIRY NOW
Product Details

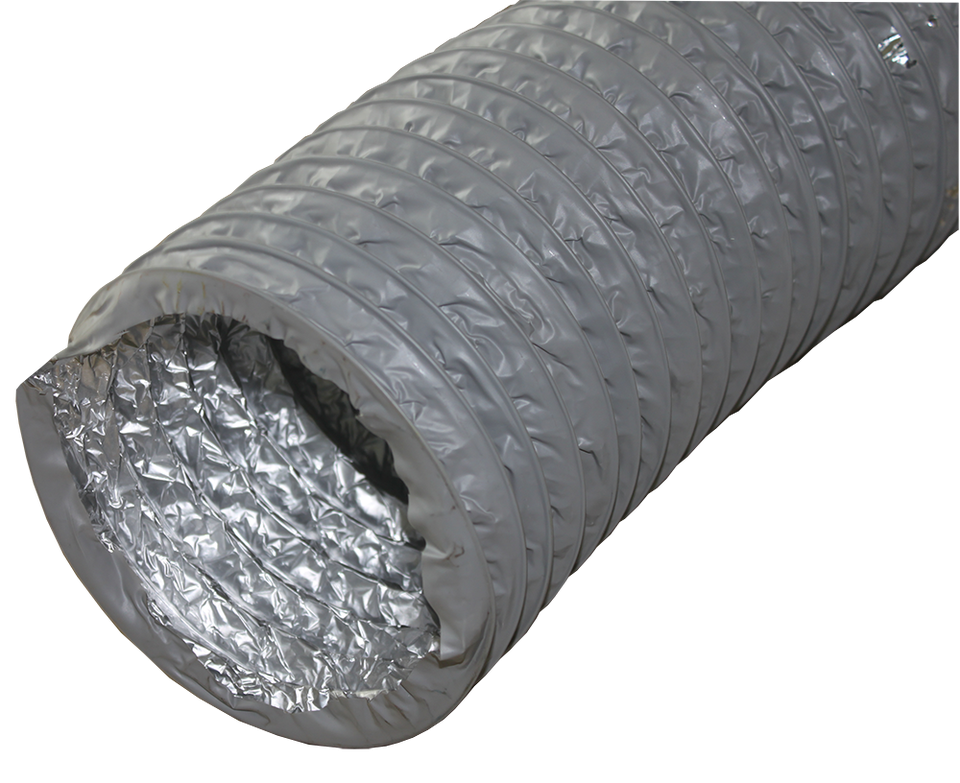

exhaust pvc flexible duct hose

Construction:

  • 2 layers of the aluminium laminated with the polyester with the coil made of the spring wire.

Total 3 layers:

  • 1st layer: Aluminum foil ( 10um)
  • 2nd layer: Polyester(15um)
  • 3rd layer: PVC ( 15um)
  • spring wire: carbon steel from 0.9~1.3mm

Description:



  • The duct is made of aluminum and polyester laminated. It is specifically designed for the needs of
    the ventilation and air conditioning market.
  • Its advantage is that it does not need to use special tools for cutting or fixing, and does not emit
    toxic gases at high temperatures. It's fireproof.

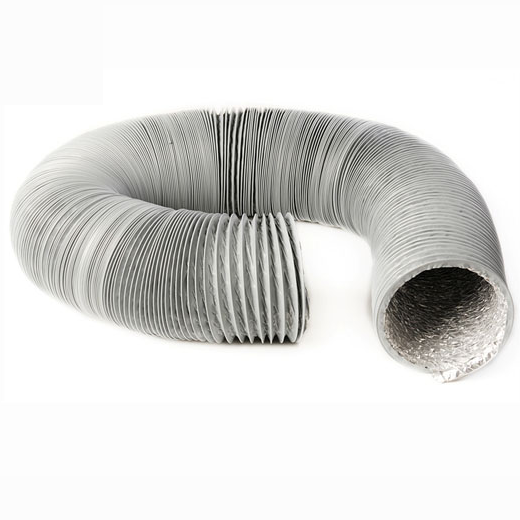

pvc flexible air hose for duct



Technical specification:

Air velocity: 30m/s (max)
Temperature range: -30℃ to '+250℃
Operating pressure: 3000Pa (max)
Fire resistance: yes
Standard length: 10m

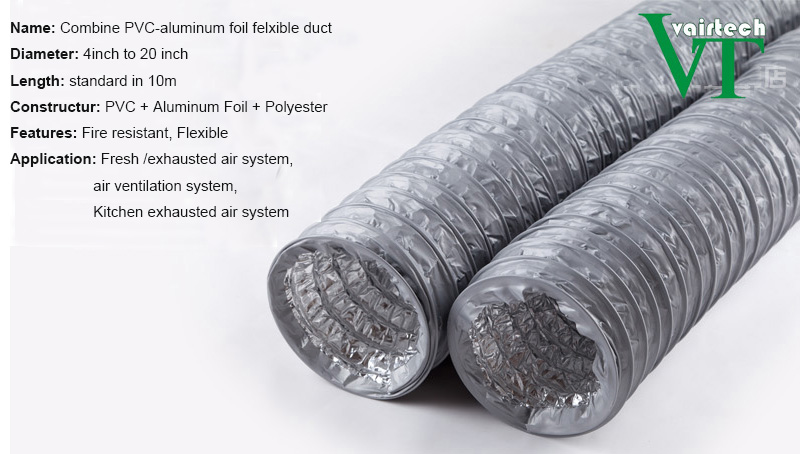

pvc combi aluminum flexible air conditioner duct

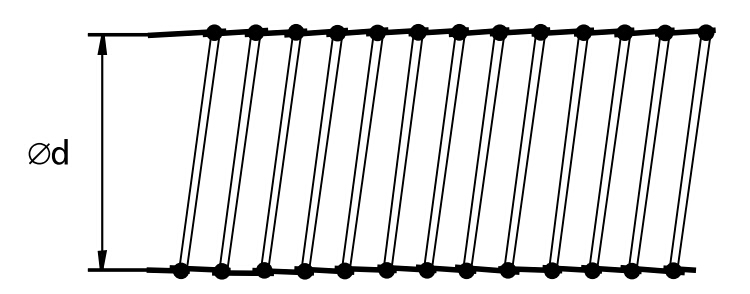

Size:

Diameter spring wire (mm)
space diameter
4" 25 1
5" 25 1
6" 30 1
7" 30 1.1
8" 35 1.1
10" 40 1.2
12" 40 1.2
14" 40 1.2
16" 40 1.3
18" 40 1.3
20" 40 1.3

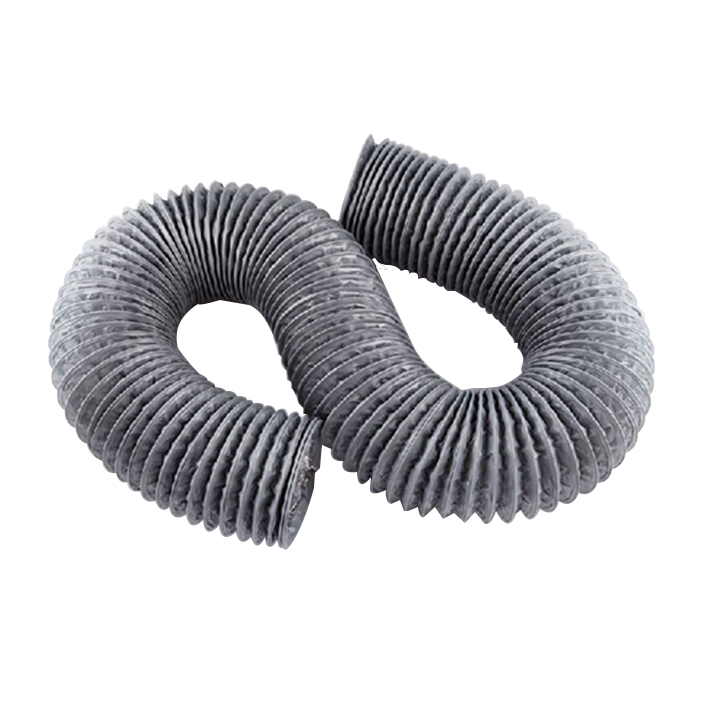

exhaust plastic flexible duct hose
