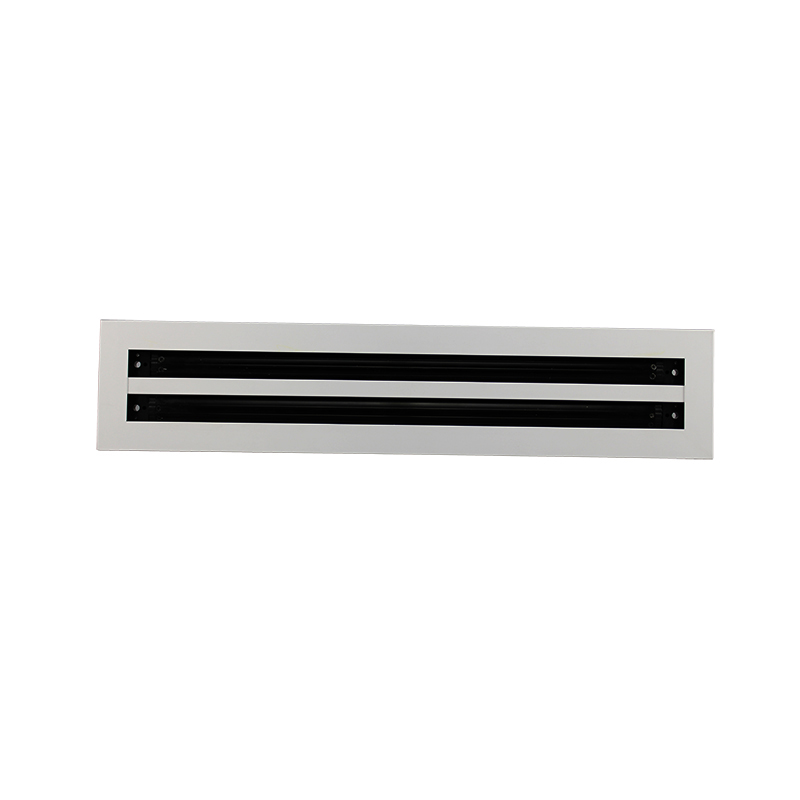

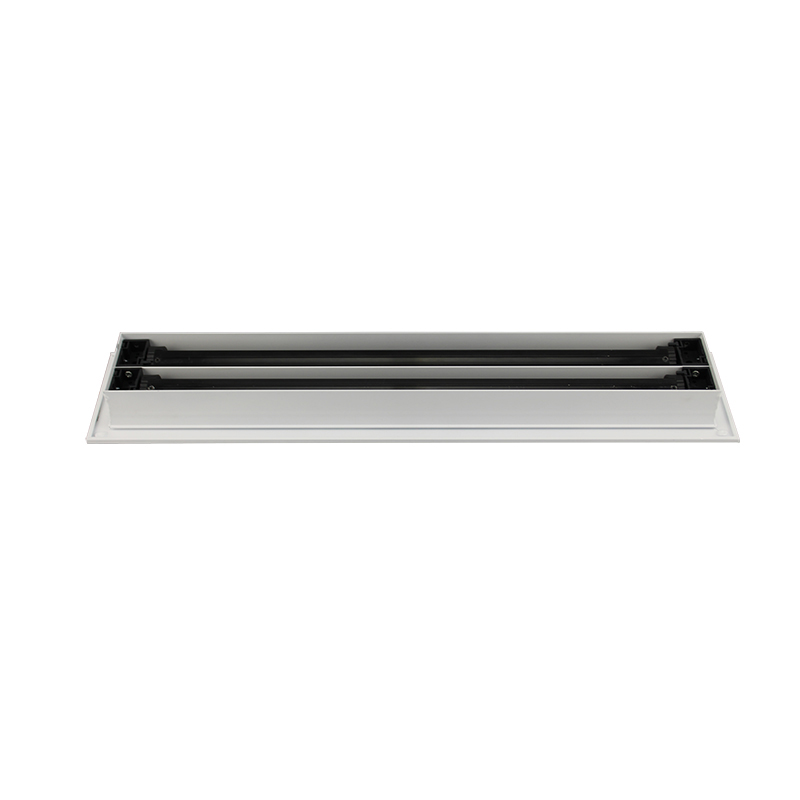

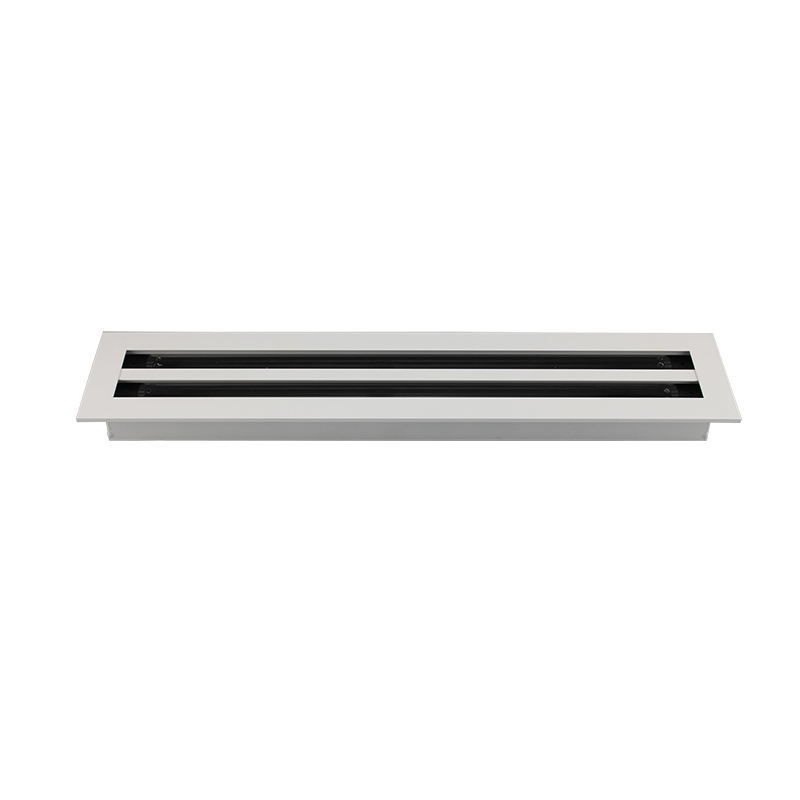

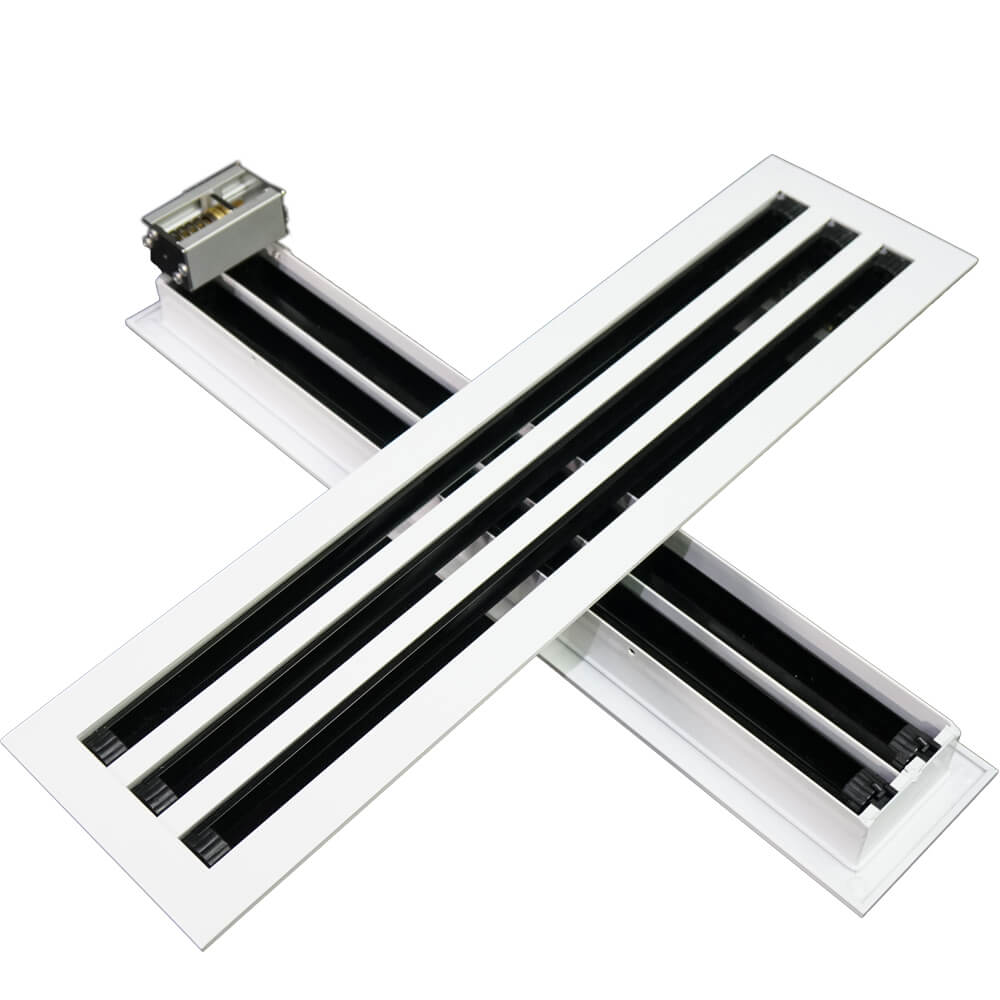

Customized Hvac Ventilation Modern Supply Ac Vents Residential Ceiling Linear Slot Diffusers Factory LS-C

Temperature control and plenum box can be added to ac linear slot diffuser to increase the performance of wind direction and volume. Construction: Frame & blades : High quality extruded aluminum alloy(A6063) profile with 28mm flange. Slot Wi

Product Specification:
  • Material : Aluminum
  • Material thickness : Standard 1.3mm/ 1.0mm
  • Slot Width : 21mm
  • Color : Standard wihte or anodized silver
  • Size : Any size is available
  • Accessories : Plenum box
INQUIRY NOW
Product Details

linear hvac grills

Construction:

  • Frame & blades : High quality extruded aluminum alloy(A6063) profile with 28mm flange.
  • Slot Width: 21mm
  • Length: up to 4 meters available in single piece



Description:

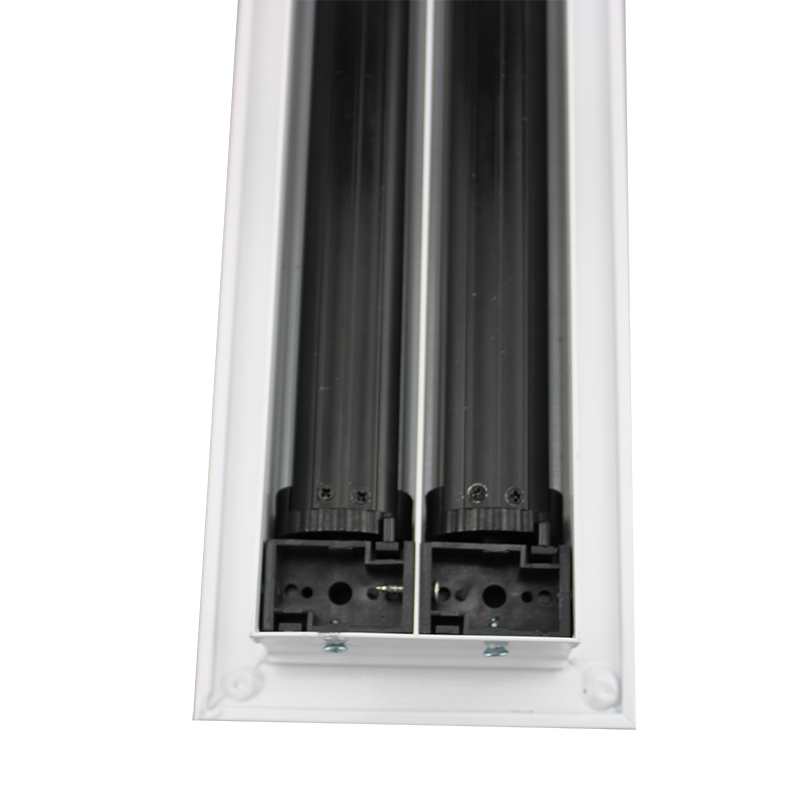

  • The frame & deflection blades are high quality PVC profiled construction with advantages of bright surface treatment.
  • Air distribution can be changed vertically or horizontaly by means of deflection blades with out changing the air flow rate.
  • The black blades can be fully adjusted from face opening.
  • Any total length can be available through combining sigle piece without end by bridge connertor.



Surface Finish:

  • Powder coated color finish as per RAL color
  • standard color: RAL9016, 9010
  • Natural anodized aluminum finish



Material thickness:

  • Frame: 1.3mm
  • Blades: 1.0mm



Size:

  • Any size available
  • Over face size= Neck size +32mm
Item Code Slots Neck Size=B(mm) Face Size=A(mm) Slot width= W1(mm)
LS-C 1 35 67 21
LS-C 2 69 101 21
LS-C 3 102 134 21
LS-C 4 136 168 21
LS-C 5 170 202 21
LS-C 6 204 236 21

ac grill linear

hvac grilles and diffusers

vairtech factory

   Foshan Vairtech Ventilation Co., Ltd. is the leading manufacturer of ventilation products & air conditioning diffusers and accessories with more than 20 years experience. Now Vairtech is one of leading brands in China.Our company is located in the aluminum hometown of China, Nanhai, Foshan, Guangdong, which enjoys the transportation and raw material convenience.

ventilation company

   We are engaged in R&D of our products, air diffusers, air grilles, air vents, air dampers, flexible ducts, access panels and so on. Now, our products are well sold to more than 150 countries with praise for the great structures, various styles, nice appearance and high quality.


   To meet the new age of globalization, we accelerate the pace of development to make more new products and provide better service to our customers. "Customer first, Quality first"-we are sincerely welcome you to contact us for business.

ventilation system

hvac system

  We started to participate in different exhibitions in 2016, and until now, we still insist on participating in exhibitions.

  On the one hand, to let more people know our brand Vairtech, so that Vairtech has more opportunities to show; On the other hand, face-to-face communication can deepen customers' understanding of Vairtech.At the same time, customers can directly contact our products and have a certain cognition of the quality and service of our HVAC ventilation products.
ac grilles

ac diffuser
   To date, Vairtech has exported many ventilation products to more than 150 countries and received a lot of feedback from our customers. As shown in the following figure, slots diffuser, disk valve and other feedback. In fact, not only products, our salesman's service is also appreciated by customers.
   Of course, if you receive the product you are not satisfied with the place, welcome to contact us,we will try our best to solve for you. Thank you for your trust and support. I hope we can have a good cooperation opportunity to start.

ac linear vents

linear diffuser ac

linear ceiling vents

According to Vairtech products, you can choose different packaging methods:
      1.Inner pvc individual packing.                      2.Outer strong carton packing.
      3.Extra pallet & wooden box for optional.        4.Special packing method is available if needed.

For specific requirements, please contact the salesman.

linear air conditioning grilles

linear ventilation grilles

Q1: What products do you mainly produce?

A: We are focus on producing hvac ventilation air grilles, ceiling air diffusers, air vent covers, air dampers & accessories, flexible ducts, access panels and so on.



Q2: I have a project, but I don't know which product is suitable, can you recommend for me?

A: You can send the drawings to us, we have professional engineers to answer your questions and recommend suitable products. We have one-stop procurement, please feel free to send your requirements to us.



Q3: Can you change the design of this product?

A: Of course,you need to provide more pictures and information to us as much as possible. We have experienced designers who are specially responsible for it, and can perfectly restore the design you want.



Q4: I like this product very much, but the freight is too high. Is it better to buy it locally?

  • A: If you have a forwarder in China, we can ship the goods to your forwarder.
  • A: If you buy other products from other companies in China, you can share the container with our products.

  • A: It is more cost-effective to buy in bulk. If you are worried about the quality, you can place a sample order first.

  • A: If it is for home use, the quantity is not large, can not afford the freight, it is recommended to buy locally.
