Wholesale Hvac System Ceiling Aluminum Frame Drywall Trapdoor Gypsum Board Access Panel AD-FCG

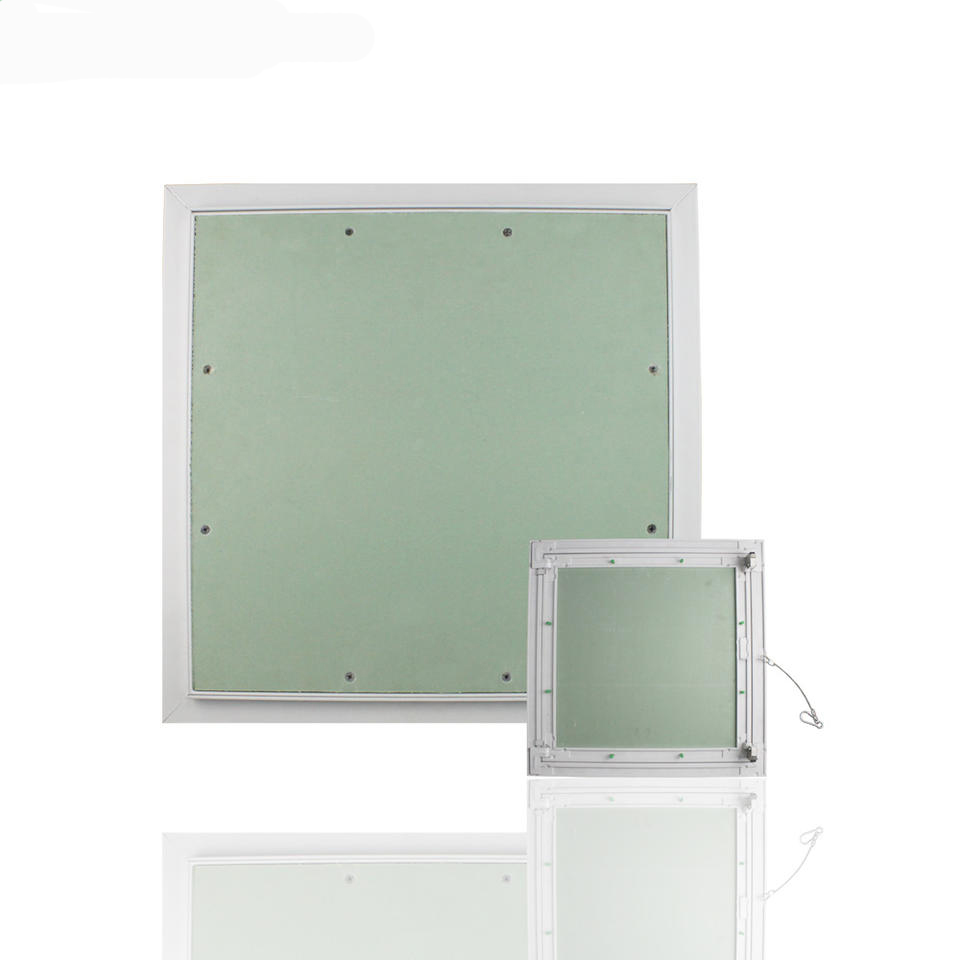

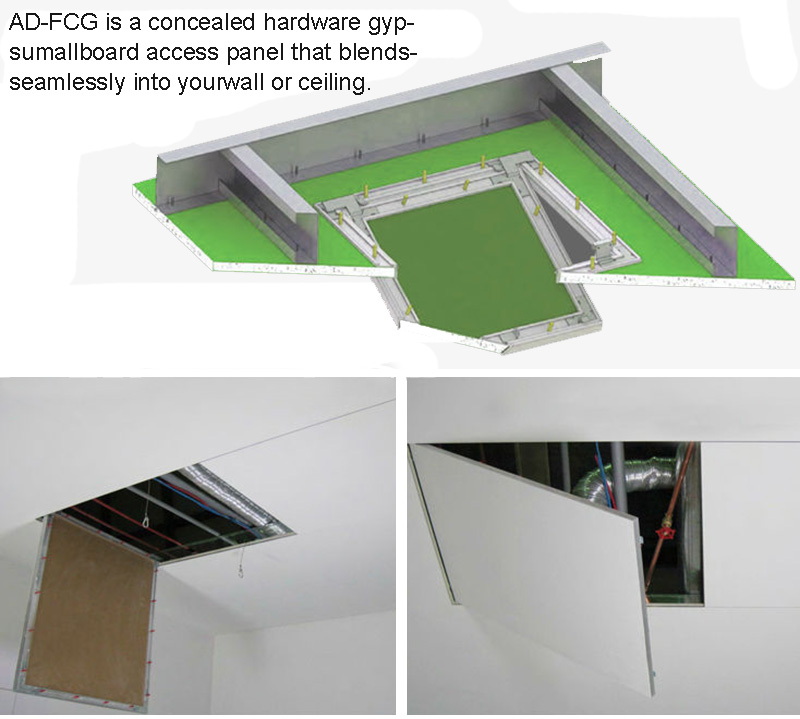

Aluminum access panel door with gypsum board is designed to provide access in walls and ceilings, while maintaining an invisible, architecturally pleasing appearance.

Product Specification:
  • Materail : Aluminum & gypsum board
  • Size : Any Size Available
  • Surface finish : Powder coated/ anodized
  • Standard Color : RAL9016,9010
  • Surface Treatment : Spray Painted
  • Material Thickness : 0.8/1.0mm or upon your request |`-+
Product Details

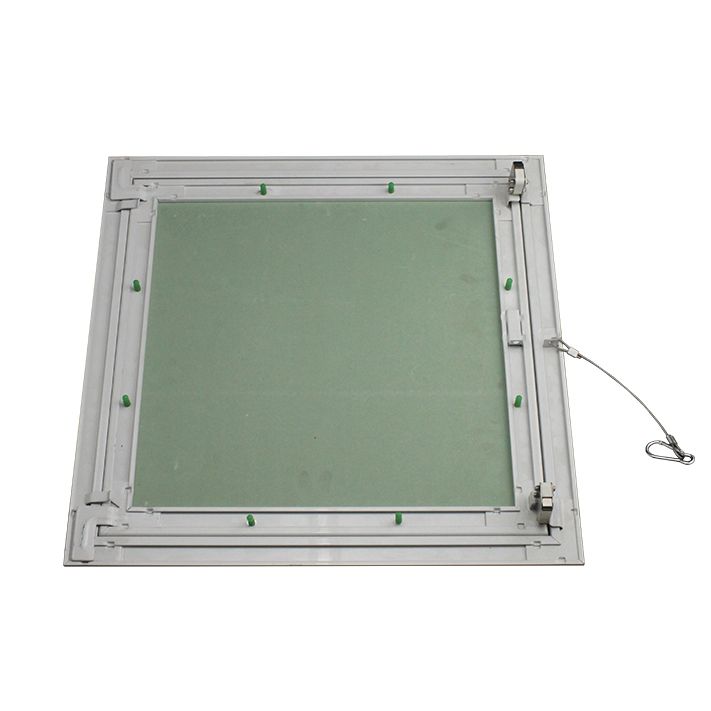

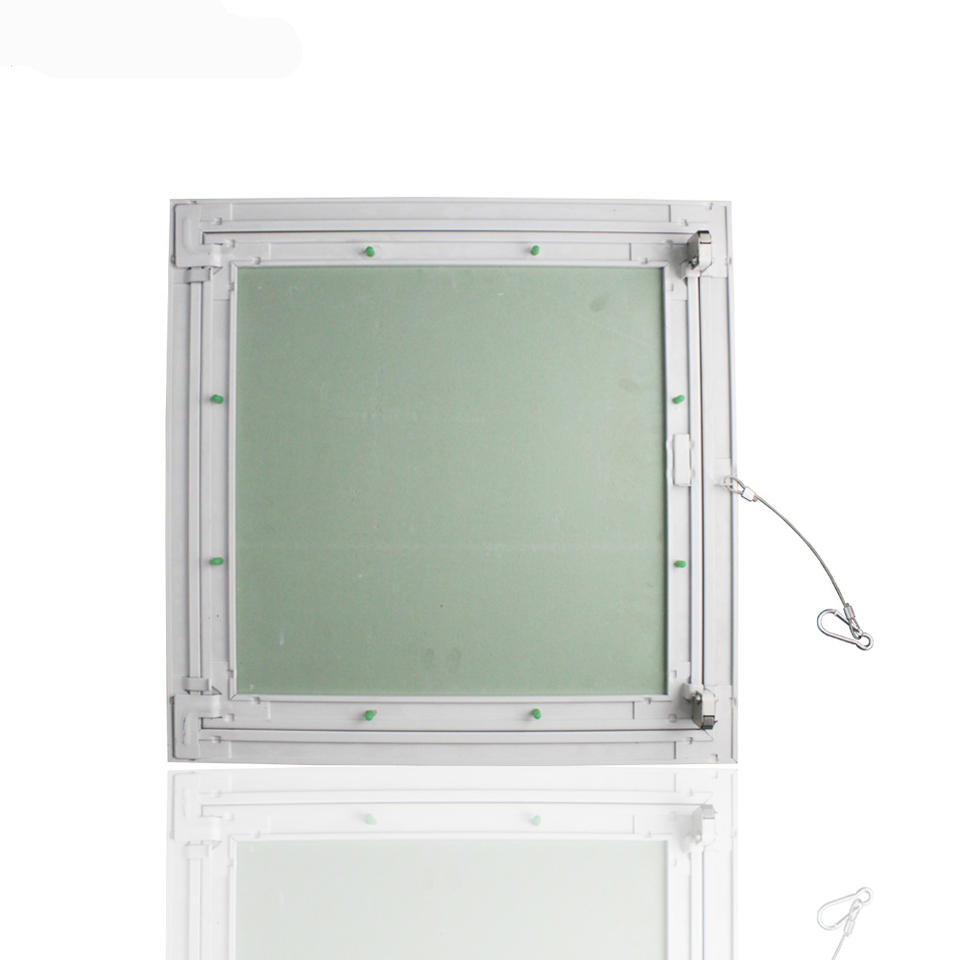

  • The frame adopts high quality extruded aluminum plate structure, which has the
    advantages of corrosion resistance and good rigidity.

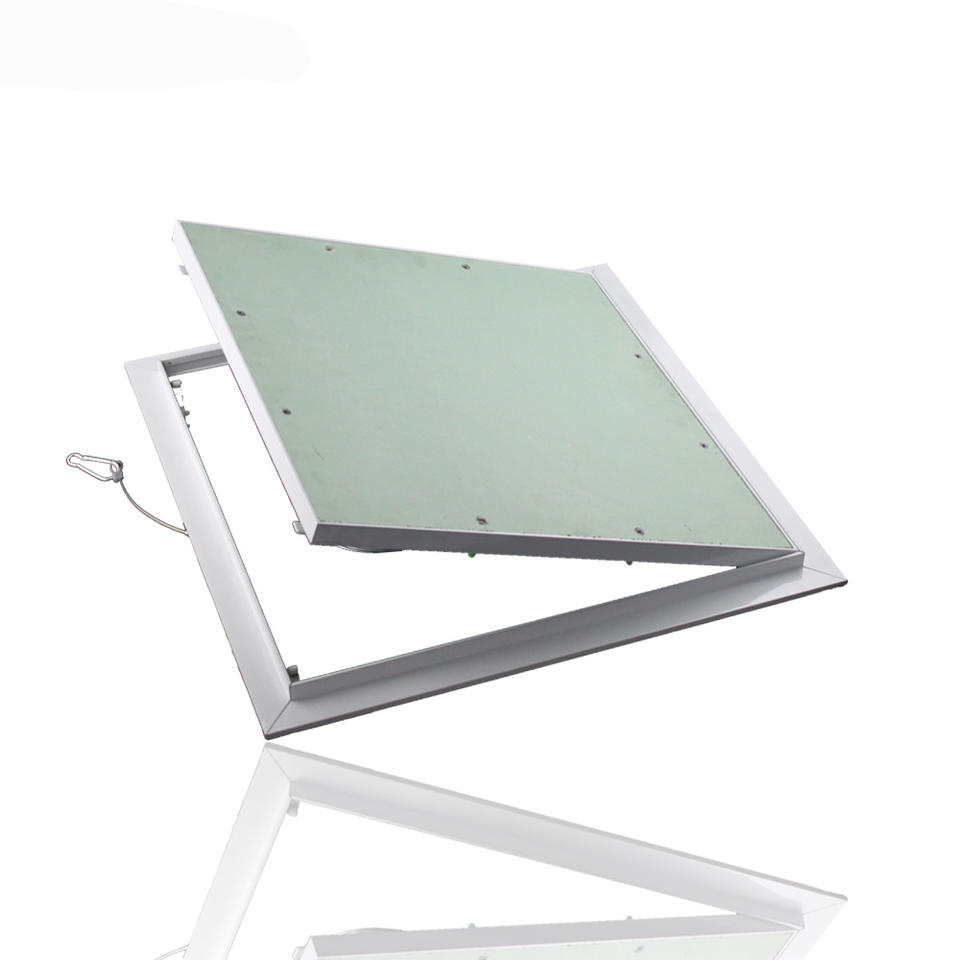

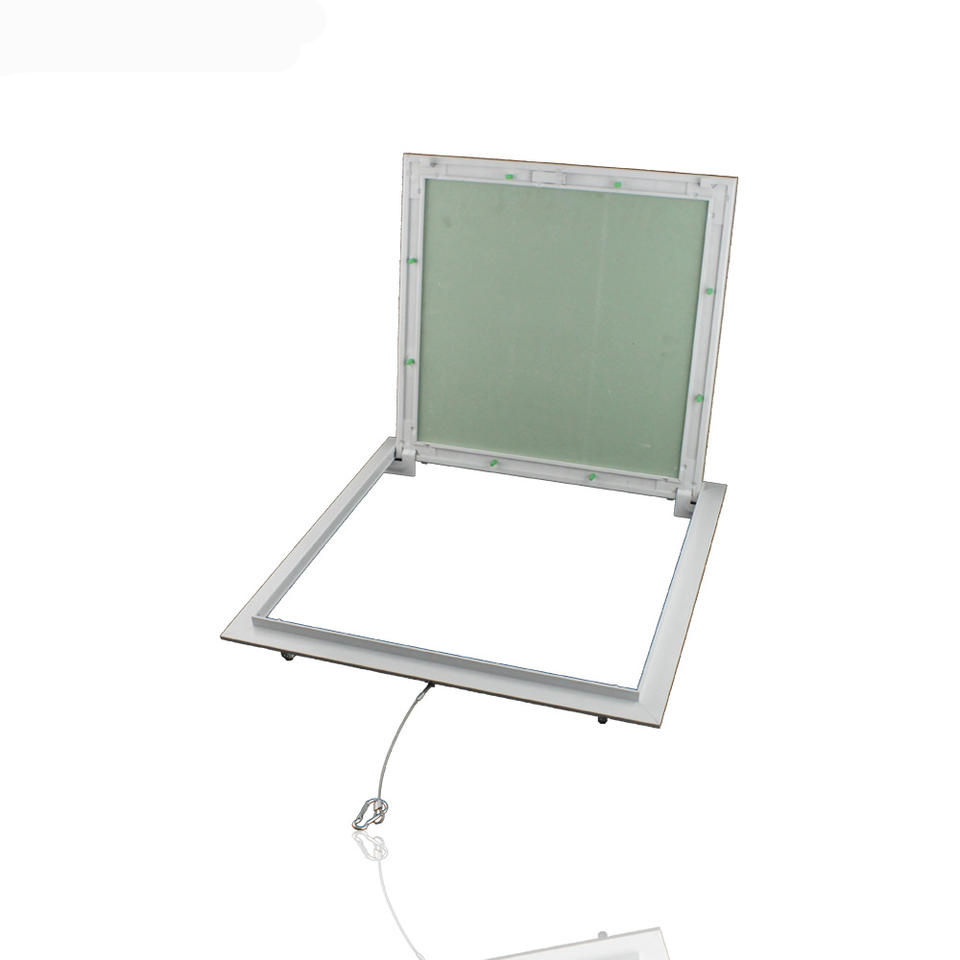

  • It consists of an outer frame and an inner frame. The inner frame is attached to the
    outer frame with a hinge on one side and a screw on the other side.

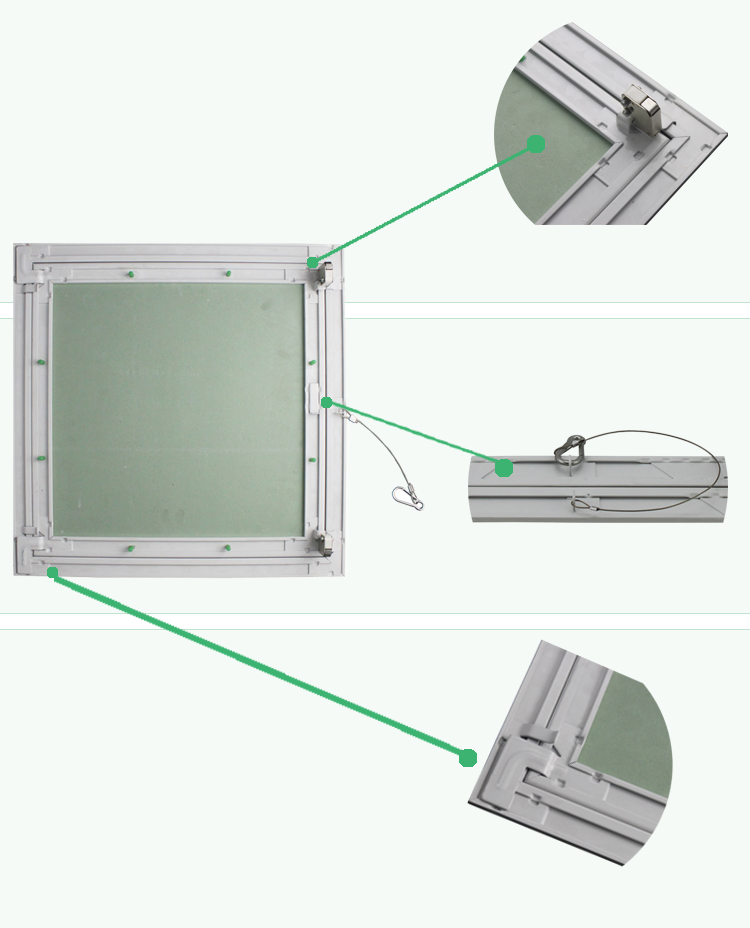

  • With elephant trunk locks, drywall, the frame can be easily opened, allowing for
    maximum flexibility in installation, maintenance.



  • Inner frame: High quality extruded aluminum alloy(A6063).
  • Out frame: High quality extruded aluminum alloy(A6063)
  • With gypsum board

flush drywall access panel

Surface Finish:

  • Powder coated color finish as per RAL color
  • Standard color: RAL9016

drywall attic access panel

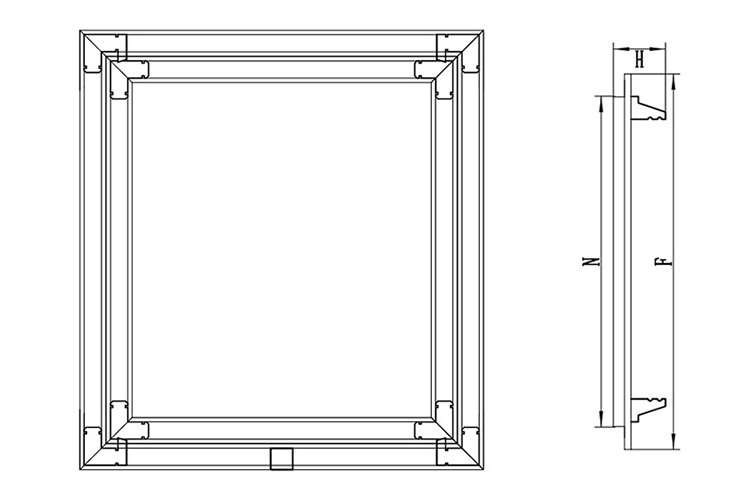

Item Code A = Neck size(mm) Neck Size =(mm)
AD-FCG-200 200x200 245x245
AD-FCG-300 300x300 345x345
AD-FCG-400 400x400 445x445
AD-FCG-450 450x450 495x495
AD-FCG-600 600x600 645x645

fire rated ceiling access panel

drywall ceiling access panel
