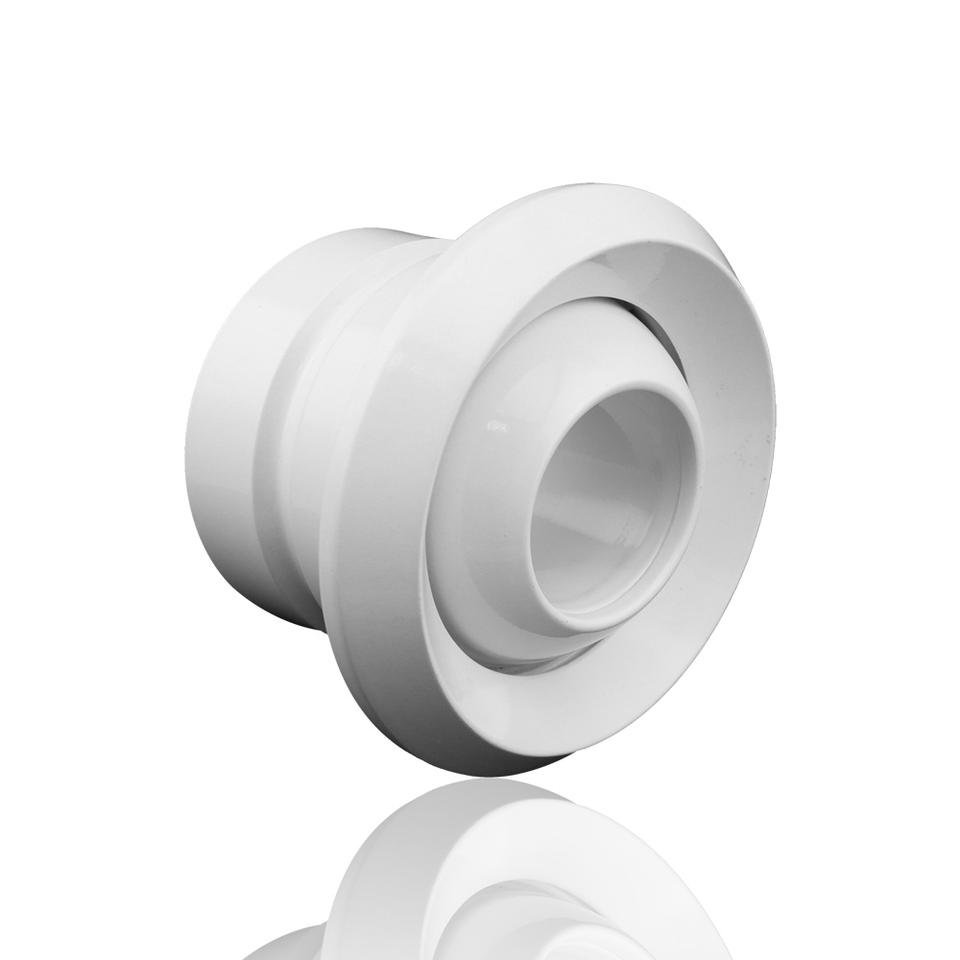

Hvac Aluminum Supply Air Round Duct Vent Ball Spout Jet Nozzle Diffuser manufacturers JD-B

Hvac Aluminum Supply Air Round Duct Vent Ball Spout Jet Nozzle Diffuser manufacturers JD-B

Hvac air conditioning ball jet nozzle diffusers & drum jet diffusers are the preferred solution wherever the supply air as to travel large distances. Jet nozzle diffuser can be adjusted in any direction within 30° from the centerline.

Product Specification:

Material : Aluminum
Material thickness : 1.3mm thick
Surface finish : Powder coated/ anodized
Standard color : Ral9016 / Ral9010
Any color : Available
Place to install : Wall, Ceiling
Characteristic : Size 100 to 63

INQUIRY NOW

Product Details

Construction:

Frame & nozzle: High quality extruded aluminum alloy(A6063) sheet.

Description:

The frame & blades are high quality extruded aluminum profiled construction with advantages
of corrosion resistance and rigidity.
This type of jet air diffuser is specially designed to use in the application where the high airflow
capacity and long throw supply system is required. Airflow can be easily adjusted from a jet to a
diffused pattern and the orientation of the airflow can be adjusted by moving the inner core..
The discharge nozzle with spherical outlet mounted to a housing, The mounted circular flange
is removable for easy installation and maintenance..

Surface Finish:

Powder coated color finish as per RAL color
standard color: RAL9016, 9010

Material thickness:

1.3mm

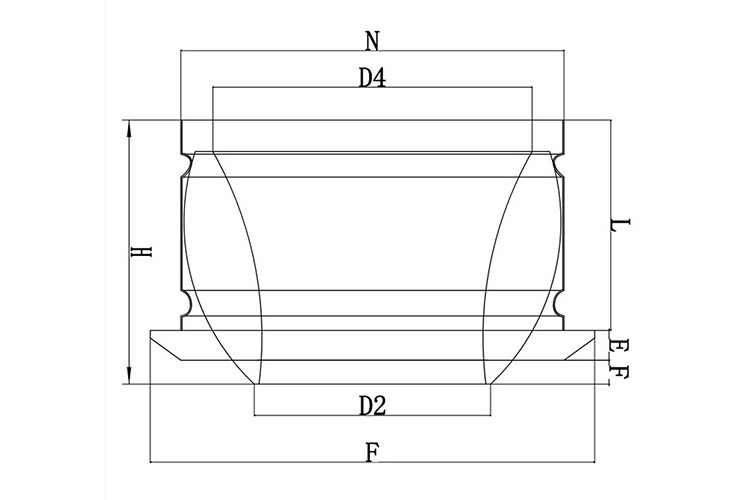

jet nozzle air diffuser

Item Code	Neck Φ A (mm)	Face Φ C (mm)	Φ D	H1	H2
JD-B-100	98	149	48	76	22
JD-B-125	122	172	61	95	24
JD-B-150	147	200	75	110	23
JD-B-160	157	210	80	110	23
JD-B-200	197	266	105	138	25
JD-B-250	247	310	128	175	27
JD-B-315	312	384	174	200	30
JD-B-350	347	433	185	210	30
JD-B-400	397	495	210	227	31
JD-B-450	447	523	233	240	32
JD-B-500	497	618	256	250	32
JD-B-630	627	779	323	280	43

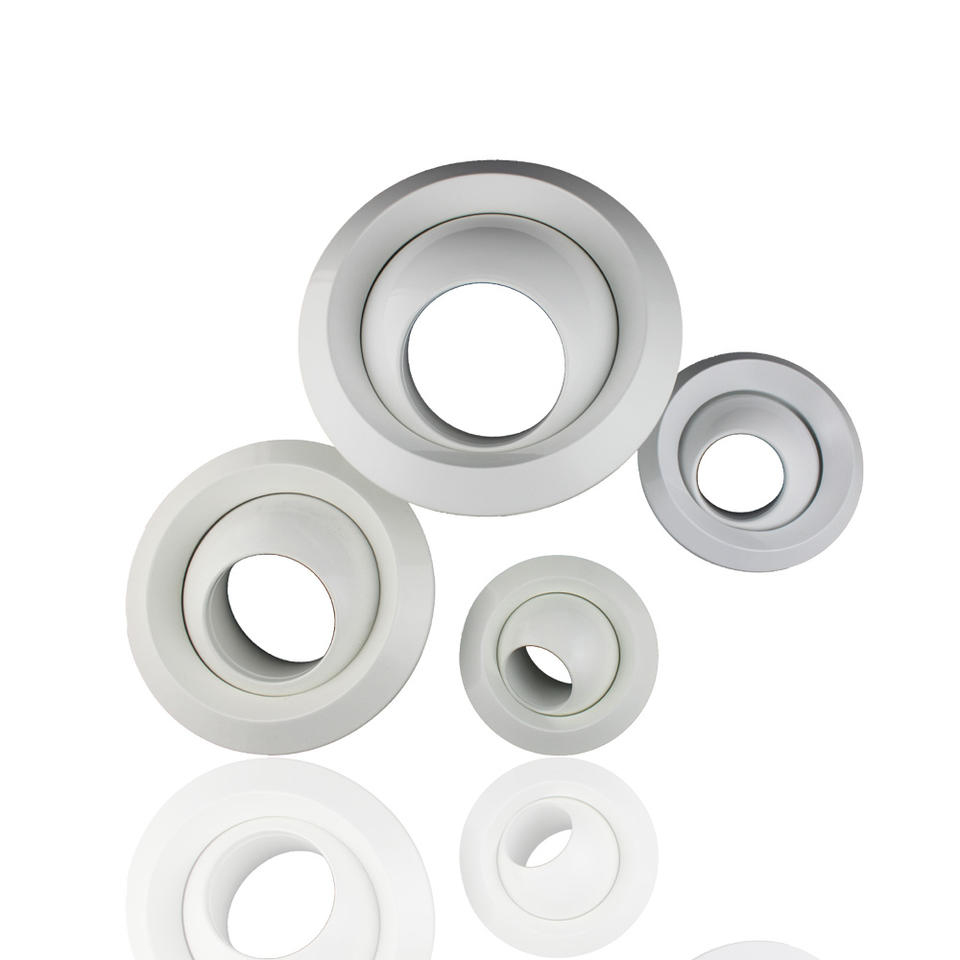

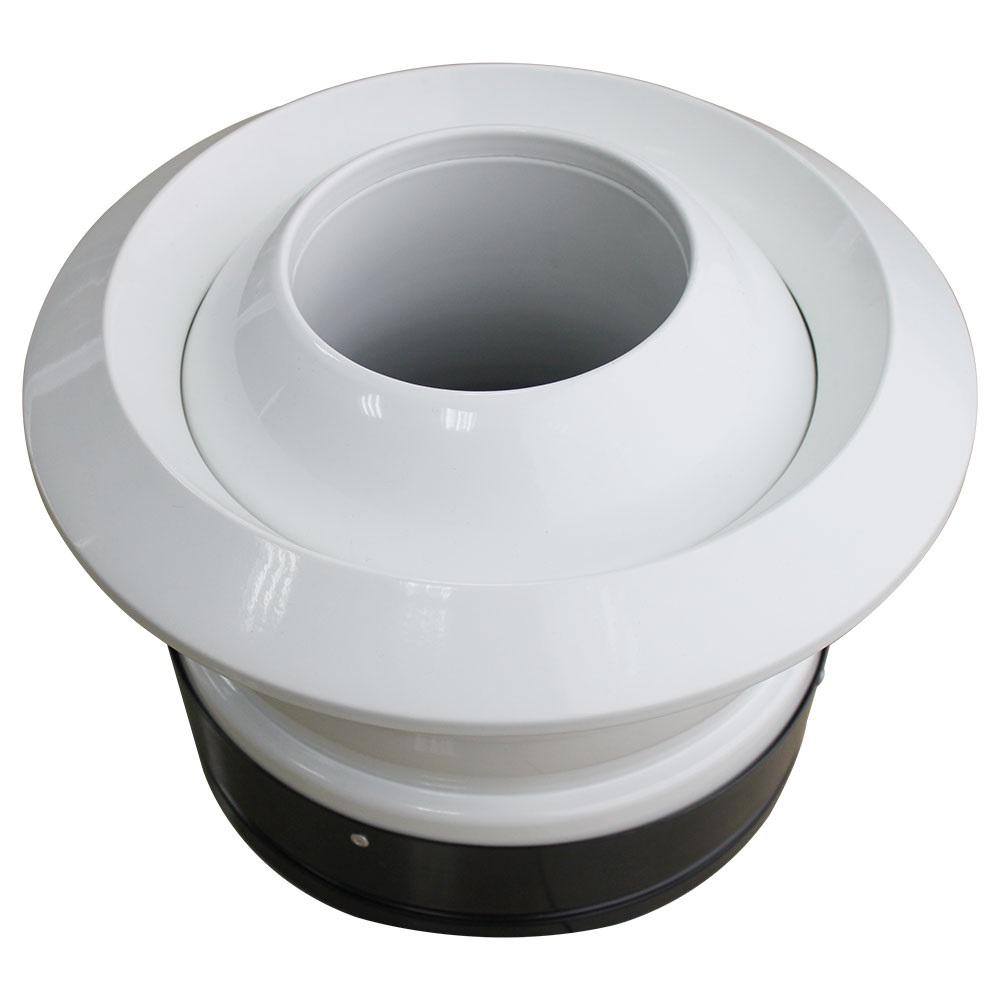

hvac jet nozzle diffuser

jet diffusers air conditioning

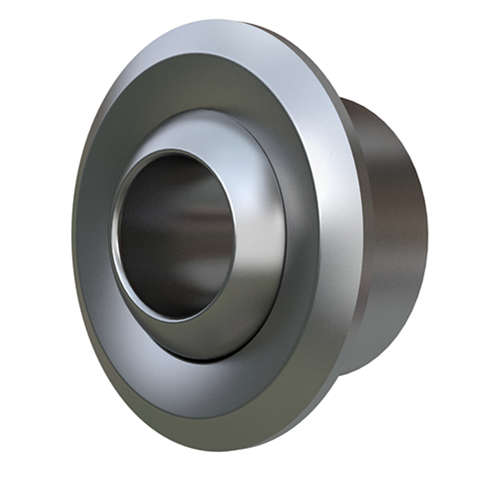

ball spout jet diffuser
